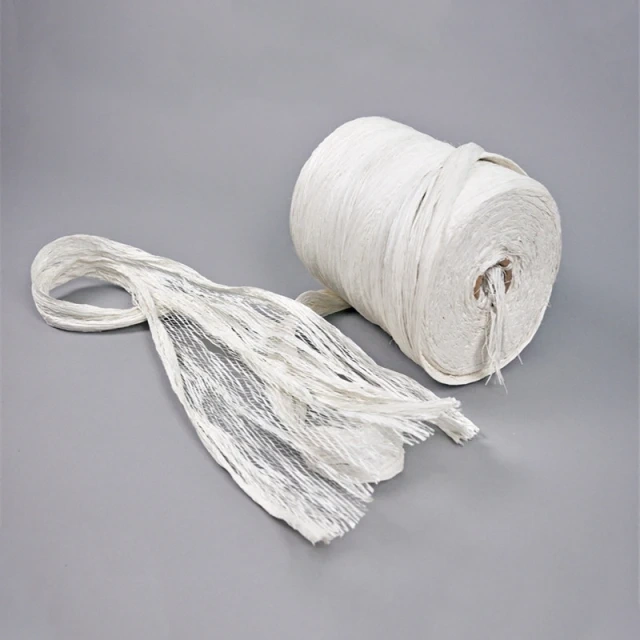

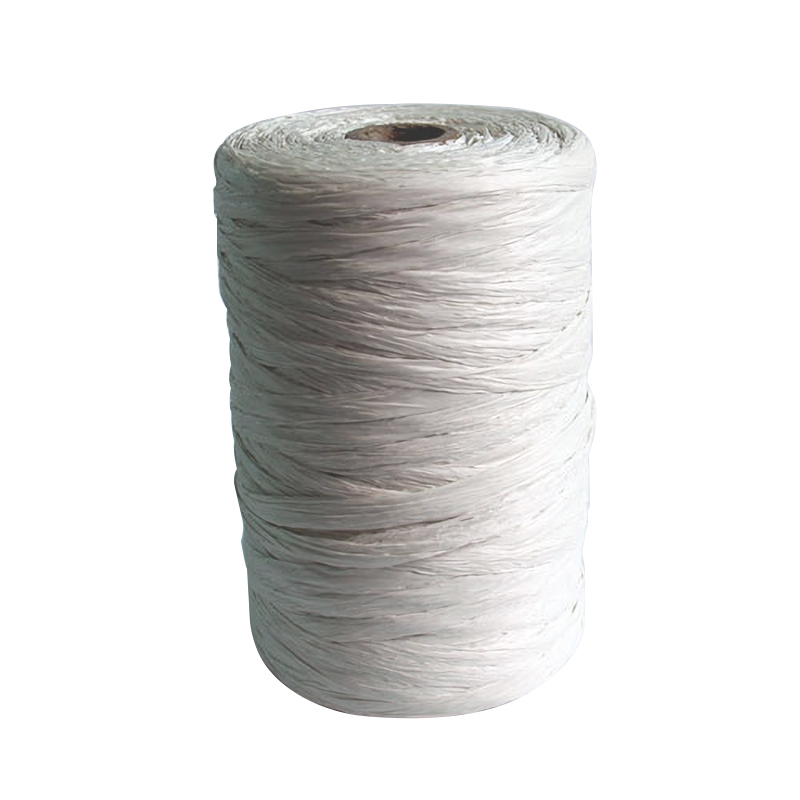

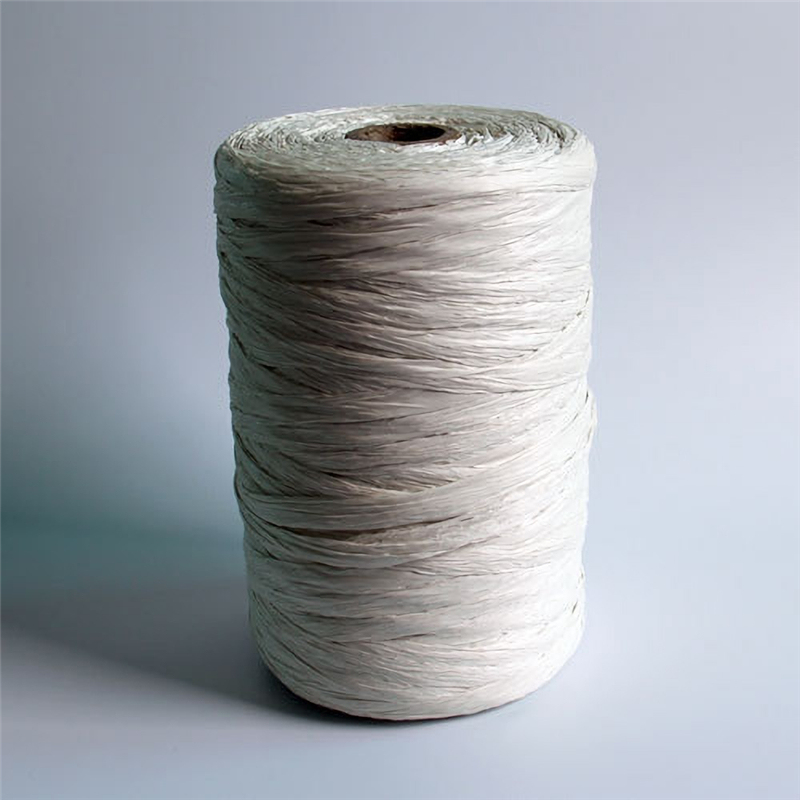

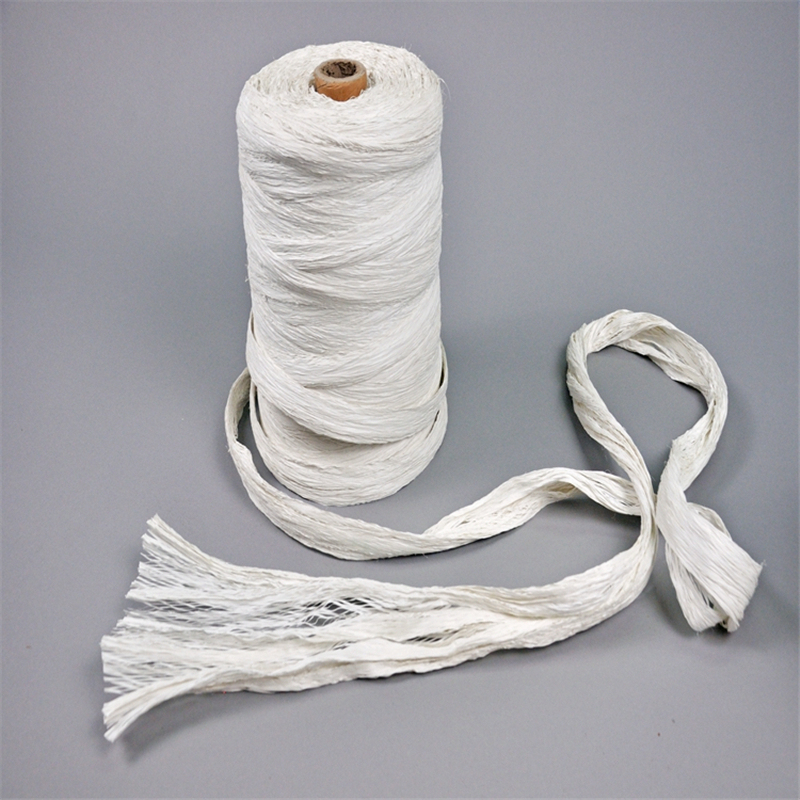

Cable Split Film Fibrillated PP Filling Yarn

Polypropylene ( PP ) Fibrillated Filling Yarn & Twine & Rope

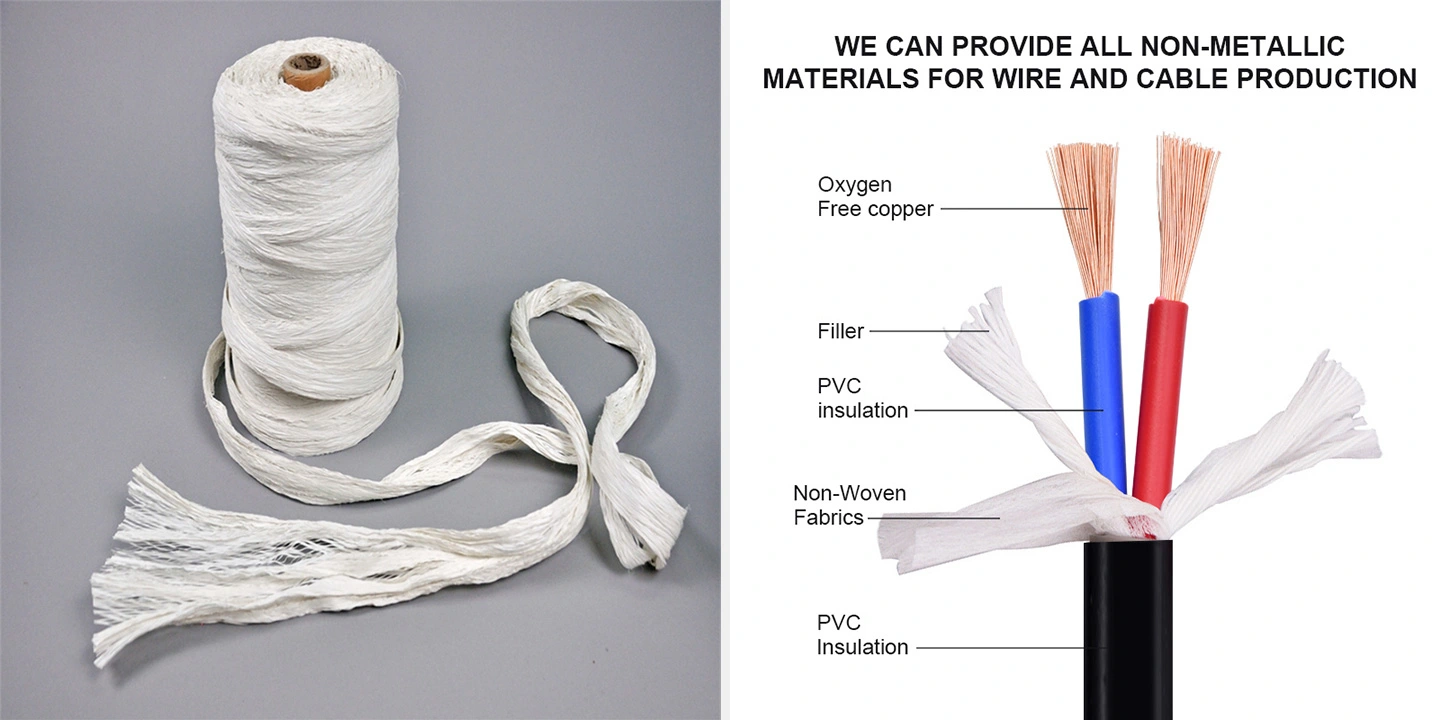

A comprehensive range of high quality twines are available and they are suitable for various cables' production.
In order to achieve such high quality, our twine is manufactured with an emphasis on the fibrillation which is crucial to achieve a high performing twine.
Fibrillation is achieved during the manufacturing process by passing the extruded tape through a fibrillation roller before being converted into a twisted twine. This process brings softness and flexibility to the twine.

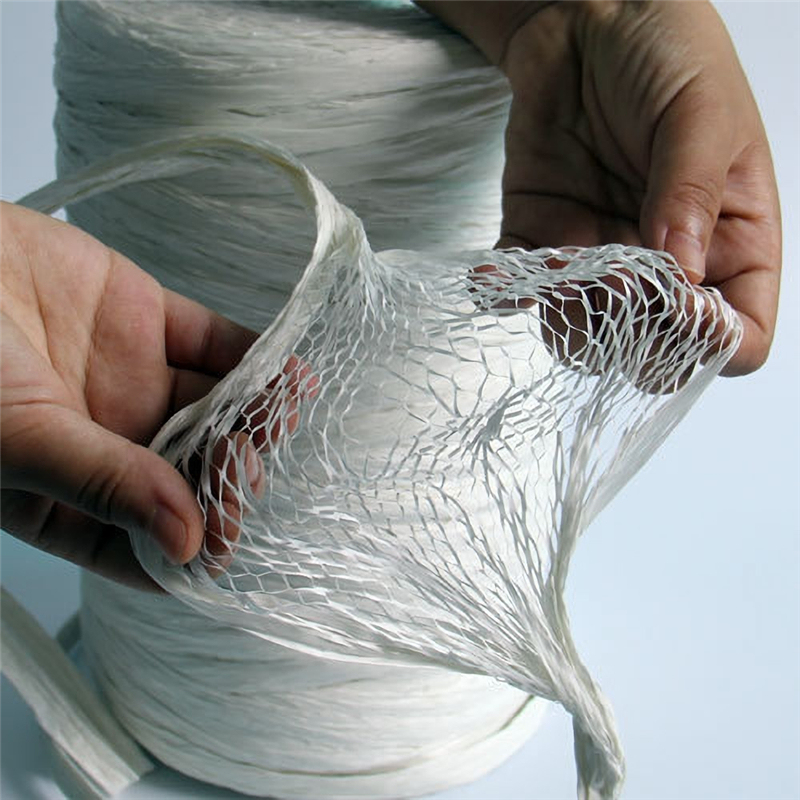

​Manufacturers who only stripe the twine cannot reach the same level of soft ness or flexibility. Fibrillated twine can be recognised by the mesh like appearance that can be seen when the twine is stretched. All our twine is thoroughly tested.
We also add various materials in the formula to adapt to cables for various purposes. The product white, dry, clean, soft and uniform thickness
  • Cable Split Film Fibrillated PP Filling Yarn
  • Cable Split Film Fibrillated PP Filling Yarn
  • Cable Split Film Fibrillated PP Filling Yarn
  • Cable Split Film Fibrillated PP Filling Yarn
  • Cable Split Film Fibrillated PP Filling Yarn

Description

Parameters

Item(mm) Polypropylene ( PP ) Fibrillated Filling Twine & Rope ( Non-twist )
Specifications(mm) 30 60 90 120 160 180 270 360
Membrane Width Error(mm) ±3.0 ±5.0 ±6.0
Thickness(mm) 0.08
Thickness of the Error(mm) 0.01
After Nian Corresponding Diameter(mm) 2.0 2.0 4.0 4.5 5.0 5.5 6.0 7.0
The Diameter Tolerance(mm) ±0.3 ±0.4 ±0.6 ±0.6 ±0.6 ±0.7 ±0.7 ±0.7
Twist(Individual/200mm)

Customized according to customer requirements



Properties Breaking Strength(Flame Retardant)( ≥N) Elongation(≤) Unit Weight(Flame Retardant)(g/m) Oxygen Index(%) Corresponding Value(mm)
30 49(50) 15 ≤1.03 ≥28 2.0±0.3
60 63(100) 20 ≤2.02(1.70) 3.0±0.4
90 95(150) 20 ≤2.90(2.55) 4.0±0.6
120 127(200) 25 ≤3.86(3.4) 4.5±0.6
160 158(200) 25 ≤4.64(4.38) 5.0±0.6
180 191(200) 25 ≤5.42(4.96) 5.5±0.7
270 220(200) 30 ≤8.44(7.60) 6.0±0.7
360 220(200) 30 ≤11.5 7.0±0.7


Item(mm) Polypropylene ( PP ) Fibrillated Filling Twine & Rope ( Stranded )
Fill the Rope Specifications

Diameter

Quality of Unit Length(Flame Retardant is Not More Than) Twist
mm mm g/m a/200mm
ø8 8±0.5 31.5(28) 3.0-3.5
ø10 10±0.6 42.5(39)
ø12 12±0.6 54(48)
ø15 15±0.8 77(75)
ø18 18±1.0 110(108)
ø20 20±1.0 153(147)
ø24 24±1.5 205(200)

Please Contact Us For Other Specifications


Features & Benefits

◆ Customize the Breaking Strength According to Your Needs
◆ Applicable to All Kinds of Cable Production
◆ Slippage and Flexibility
◆ Mechanic Fibrillation
◆ Superior Uniformity
◆ Dry, Clean, Soft and Uniform Thickness
